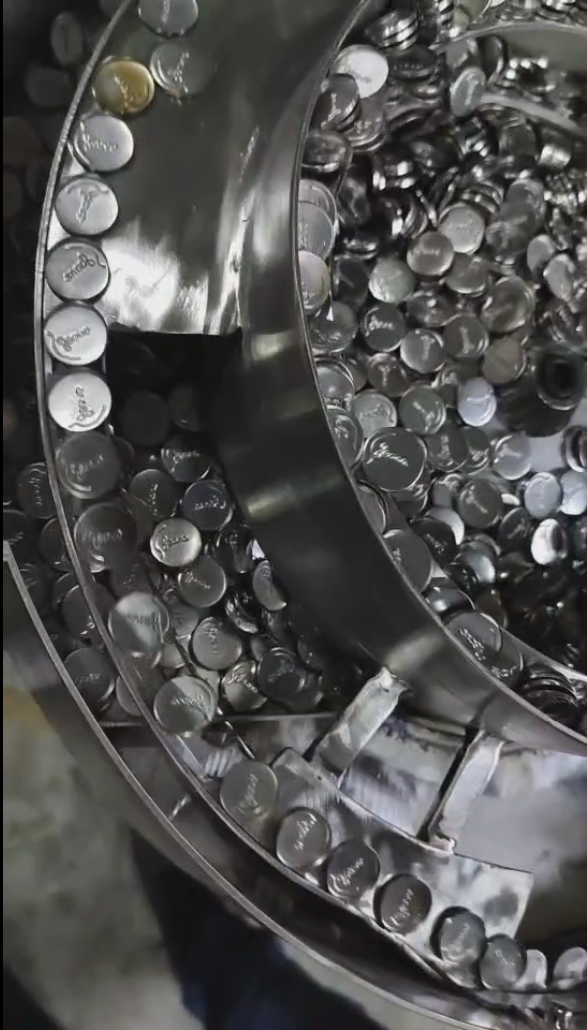

Vibrating disc

A Vibrating Disc is an automatic orienting and feeding device, mainly used for sorting and conveying small components. During operation, high-frequency vibrations generated by the bottom electromagnet make parts (such as screws, buttons, electronic components) in the hopper move upward along the spiral track. Meanwhile, orienting mechanisms (such as notches, baffles) on the track eliminate parts with incorrect orientations, ensuring parts are discharged in a unified posture and conveyed to subsequent processing stations (e.g., assembly machines, packaging machines). It is widely used in the front end of automated production lines in electronics, hardware, plastics, pharmaceuticals, and other industries.

Warning: Invalid argument supplied for foreach() in /www/wwwroot/qcgac.com/wp-content/themes/SNKJ/single/single-grid.php on line 196

Free to contact us

Product Struction

Efficient orienting and sorting：Processes 50-200 parts per minute, automatically adjusting postures according to part complexity, replacing manual sorting with over 80% efficiency improvement.
Flexible adaptation：Compatible with parts of different shapes (round, square, special-shaped) with diameters of 0.5-50mm by adjusting vibration frequency, track inclination, and orienting structures.
Precise feeding control：Equipped with sensors and controllers, it enables "on-demand feeding", avoiding part accumulation or shortage, with positioning accuracy up to ±0.1mm for subsequent equipment.
Low maintenance cost：Without complex transmission components, the main wear parts are spring plates and wear-resistant tracks, which are easy to replace, with annual maintenance costs only 1/3 of traditional feeding mechanisms.
